Beverage
Seam Thickness Gauge

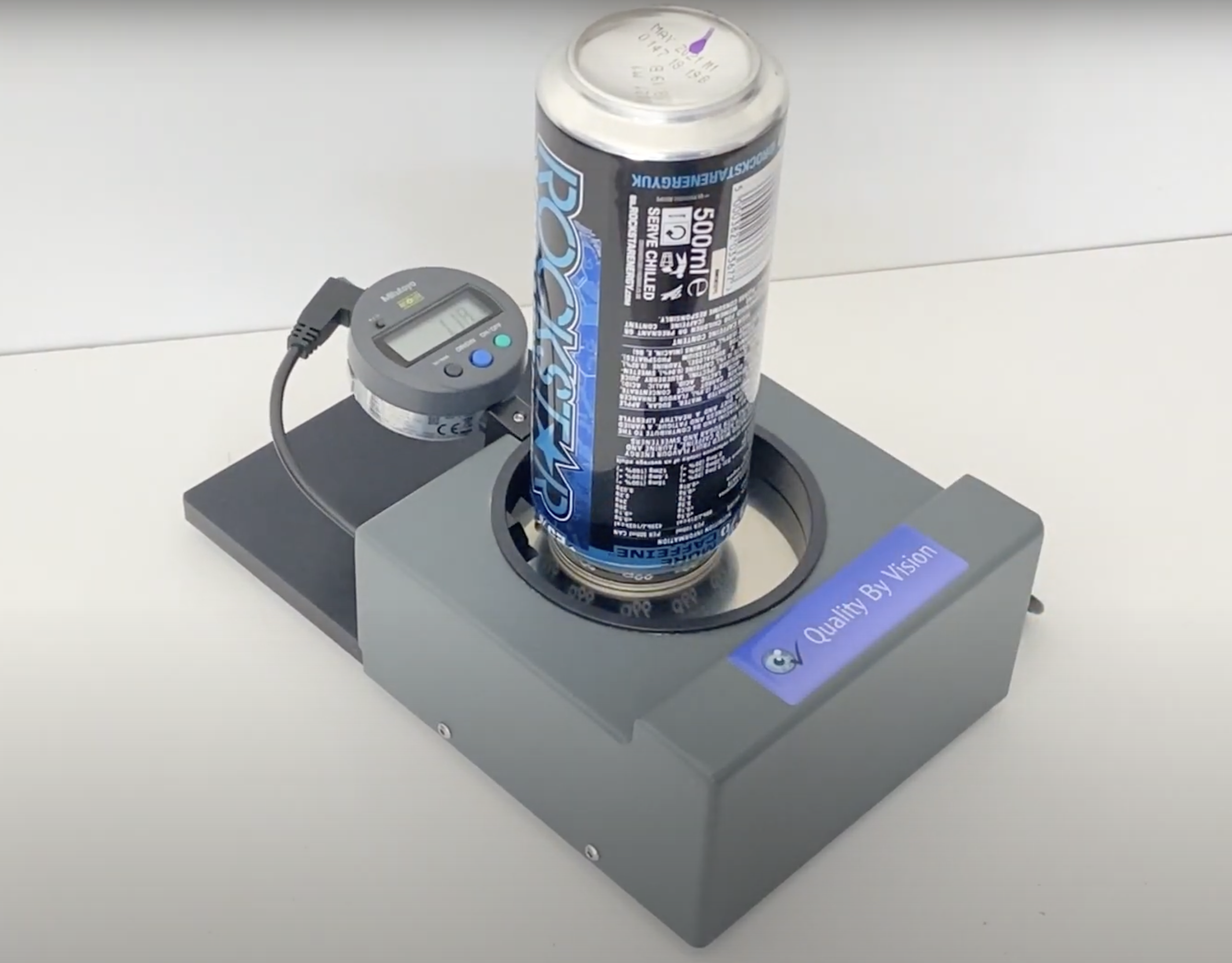

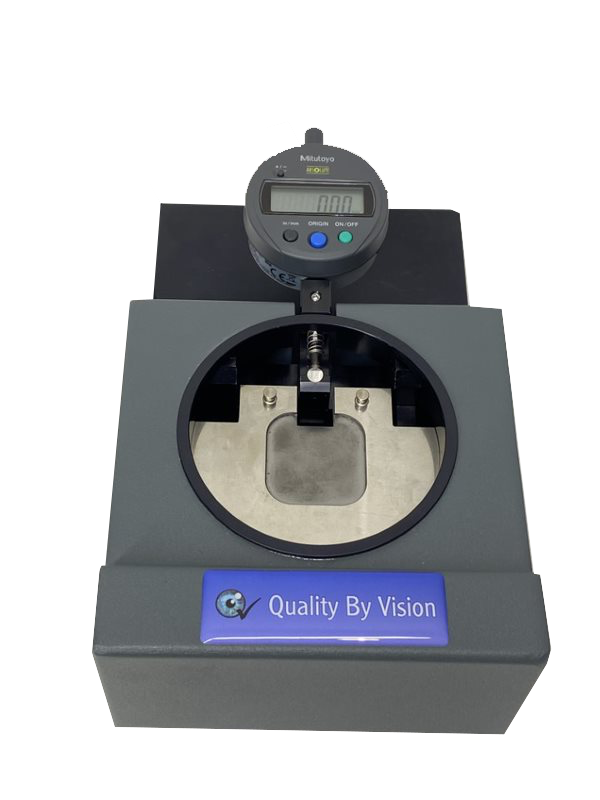

Adaptive double seam thickness gauge
Double seam thickness is often the first place where double seam problems can be easily identified.
Many companies still use manual seam micrometers, which simply do not perform well with beverage cans. The correct chuck wall angle is difficult to match, and the delicate, flexible nature of the beverage double seam means different operators can obtain a variation in results for the same measurement position.
Specifications
- Can type
- Beverage and beer cans
- Seam diameters
- 200 to 300 (50 to 77 mm)
- Resolution
- 0.0004 inch (0.01mm)
Features
- Measures seam thickness at the precise chuck wall angle, for better accuracy than a traditional micrometer.
- Dramatically reduces the time taken to capture these critical measurements whilst maintaining accuracy and repeatability.
- Measuring externally avoids the artificial thickness increase caused by material spring back when a can is cut open.
Applications
Small and large beverage and beer can fillers, including lines with multiple seaming heads.
