Beverage

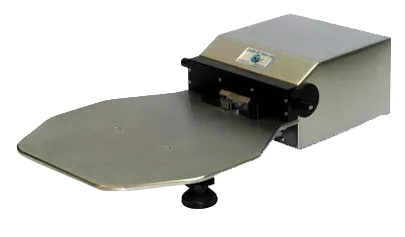

SEAMetal HD
Double-seam video inspection system

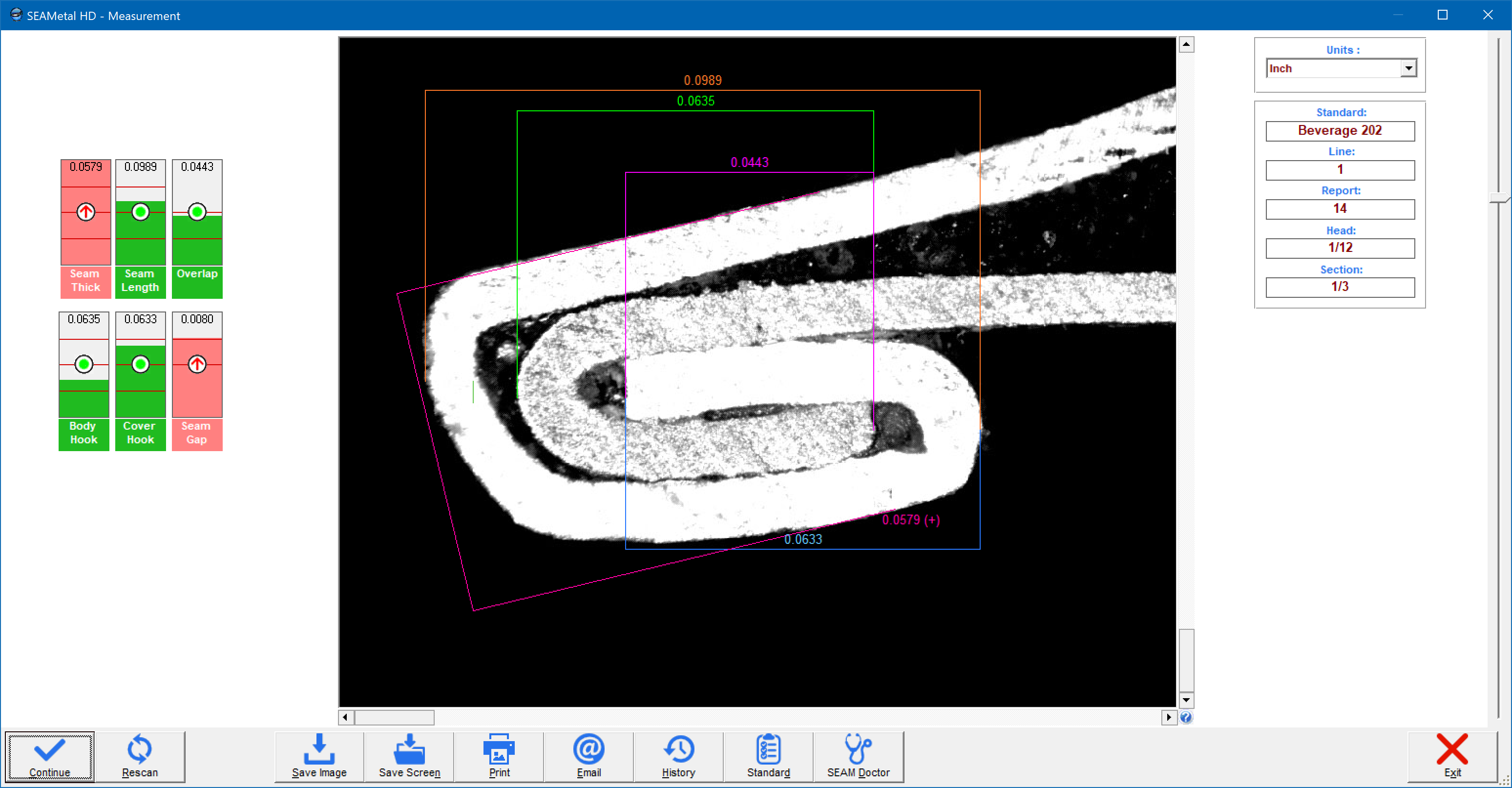

SEAMetal HD is the high definition version of Quality By Vision's SEAMetal system, the most widely used, repeatable and accurate double seam measurement system in the world.
Independently rated for world class GR&R, it is the industry's most flexible double seam testing solution, combining an integrated HD camera with Statistical Process Control software.
Specifications
- Resolution
- 0.003mm to 0.005mm (3 to 5 microns)
- Operating system
- Windows 7, 10 and 11
- Multi-touch and gesture support
- PDF export in reports
- Improved detection and image quality
- New database format
Features
- Automatically captures and analyses double seams with unprecedented resolution and accuracy.
- Integrated Statistical Process Control software for trending and reporting.
- Suitable for both three-piece and two-piece beverage cans.
- The fifth generation of the system since 1993, with an integrated HD camera.
- SEAM doctor assists with fault diagnosis and root cause analysis.
